JVCC EGPF-02 Kapton Polyimide Film Tape [2 mil]
ITEMS ON BACKORDER: *** orders can be placed for backordered items at any timeThe following are expected in approximately 2 day(s):
Color/Size: AMBER / TRANSPARENT 1/4 in. x 36 yds., 3/8 in. x 36 yds., 1/2 in. x 36 yds., 5/8 in. x 36 yds., 3/4 in. x 36 yds., 7/8 in. x 36 yds., 1 in. x 36 yds., 1-1/2 in. x 36 yds., 1-3/4 in. x 36 yds., 2 in. x 36 yds., 3 in. x 36 yds., 4 in. x 36 yds., 5 in. x 36 yds., 6 in. x 36 yds.
EGPF-02 Standard sizes
| ROLL SIZE | ITEM # |
ROLLS PER CASE |
QUANTITY ORDERING |
PRICE PER ROLL |
PRICE PER CASE |
|---|
1/4 in. x 36 yds.Actual Size: 6.3mm wide | EGPF-02/ 02536 | 24 | Single Roll (1-23 Rolls) 1 - 2 Cases (24-71 Rolls) 3 - 5 Cases (72-143 Rolls) 6+ Cases (>= 144 Rolls) | | |
3/8 in. x 36 yds.Actual Size: 9.5mm wide | EGPF-02/ 03836 | 16 | Single Roll (1-15 Rolls) 1 - 2 Cases (16-47 Rolls) 3 - 5 Cases (48-95 Rolls) 6+ Cases (>= 96 Rolls) | | |
1/2 in. x 36 yds.Actual Size: 12.7mm wide | EGPF-02/ 0536 | 12 | Single Roll (1-11 Rolls) 1 - 2 Cases (12-35 Rolls) 3 - 5 Cases (36-71 Rolls) 6+ Cases (>= 72 Rolls) | | |
5/8 in. x 36 yds.Actual Size: 15.9mm wide | EGPF-02/ 06336 | 10 | Single Roll (1-9 Rolls) 1 - 2 Cases (10-29 Rolls) 3 - 5 Cases (30-59 Rolls) 6+ Cases (>= 60 Rolls) | | |
3/4 in. x 36 yds.Actual Size: 19.0mm wide | EGPF-02/ 07536 | 8 | Single Roll (1-7 Rolls) 1 - 2 Cases (8-23 Rolls) 3 - 5 Cases (24-47 Rolls) 6+ Cases (>= 48 Rolls) | | |
7/8 in. x 36 yds.Actual Size: 22.2mm wide | EGPF-02/ 08836 | 8 | Single Roll (1-7 Rolls) 1 - 2 Cases (8-23 Rolls) 3 - 5 Cases (24-47 Rolls) 6+ Cases (>= 48 Rolls) | | |
1 in. x 36 yds.Actual Size: 25.4mm wide | EGPF-02/ 136 | 6 | Single Roll (1-5 Rolls) 1 - 2 Cases (6-17 Rolls) 3 - 5 Cases (18-35 Rolls) 6+ Cases (>= 36 Rolls) | | |
1-1/2 in. x 36 yds.Actual Size: 38.1mm wide | EGPF-02/ 1536 | 4 | Single Roll (1-3 Rolls) 1 - 2 Cases (4-11 Rolls) 3 - 5 Cases (12-23 Rolls) 6+ Cases (>= 24 Rolls) | | |
1-3/4 in. x 36 yds.Actual Size: 44.4mm wide | EGPF-02/ 17536 | 4 | Single Roll (1-3 Rolls) 1 - 2 Cases (4-11 Rolls) 3 - 5 Cases (12-23 Rolls) 6+ Cases (>= 24 Rolls) | | |
2 in. x 36 yds.Actual Size: 50.8mm wide | EGPF-02/ 236 | 4 | Single Roll (1-3 Rolls) 1 - 2 Cases (4-11 Rolls) 3 - 5 Cases (12-23 Rolls) 6+ Cases (>= 24 Rolls) | | |
3 in. x 36 yds.Actual Size: 76.2mm wide | EGPF-02/ 336 | 2 | Single Roll (1-1 Rolls) 1 - 2 Cases (2-5 Rolls) 3 - 5 Cases (6-11 Rolls) 6+ Cases (>= 12 Rolls) | | |
4 in. x 36 yds.Actual Size: 101.6mm wide | EGPF-02/ 436 | 2 | Single Roll (1-1 Rolls) 1 - 2 Cases (2-5 Rolls) 3 - 5 Cases (6-11 Rolls) 6+ Cases (>= 12 Rolls) | | |
5 in. x 36 yds.Actual Size: 127mm wide | EGPF-02/ 536 | 2 | Single Roll (1-1 Rolls) 1 - 2 Cases (2-5 Rolls) 3 - 5 Cases (6-11 Rolls) 6+ Cases (>= 12 Rolls) | | |
6 in. x 36 yds.Actual Size: 152.4mm wide | EGPF-02/ 636 | 2 | Single Roll (1-1 Rolls) 1 - 2 Cases (2-5 Rolls) 3 - 5 Cases (6-11 Rolls) 6+ Cases (>= 12 Rolls) | | |
Nominal Tape Widths vs Actual Widths
Tape rolls are cut to standard tape industry metric widths of approx. 24mm per 1-inch of nominal width ordered. As a result ACTUAL tape widths are normally 5% narrower than the NOMINAL width shown in inches. Examples:
- 1" Nominal width = 15/16" (24mm) Actual width
- 2" Nominal width = 1-7/8" (48mm) Actual width
- 3" Nominal width = 2-13/16" (72mm) Actual width
Note that tape rolls are NOT guaranteed to be splice-free.
Custom Tape Widths
May be Available!
- Need custom sized or "full-cut" width tapes? Many of our tapes come to our converter as full wide width "log rolls" (not pre-cut), and can be custom cut to widths not shown in the pricing table.
- Contact us today for pricing and minimum requirements to order your desired tape in a custom width.
- Please note that since this tape comes in "log roll" format most rolls ship on a plain white core (i.e. with no branding or text inside the core).
EGPF-02 Special Order Sizes
| ROLL SIZE | ITEM # |
ROLLS PER CASE |
QUANTITY ORDERING |
PRICE PER ROLL |
PRICE PER CASE |
|---|
16 in. x 36 yds.Actual Size: 406.4mm wide Approximately 4 extra business days to ship | EGPF-02/ 1636 | 3 | Single Roll (1-2 Rolls) 1 - 2 Cases (3, 6 Rolls) 3 - 5 Cases (9, 12, 15 Rolls) 6+ Cases (18, 21, 24, ... Rolls) | $242.80 $239.04 $232.20 $209.24 | |
Special Order Policies & Footnotes:
Special Order Policies
- Special orders are non-returnable (and non-cancelable if materials have been already ordered or cut before the cancellation request was received).
- Special order sizes often ship direct from our supplier so will not arrive together with stocked products.
Product Description

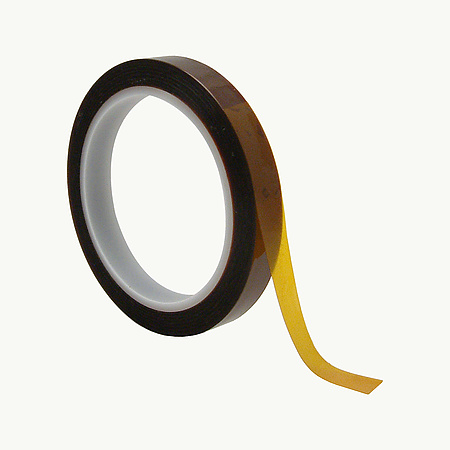

JVCC EGPF-02 Kapton™ Polyimide Film Tape is a 2 mil electrical grade Kapton alternative POLYIMIDE film coated with a high performance silicone adhesive. It is a wave solder/hot air leveling tape used to protect gold contacts on printed circuit boards from molten solder during hot air wave solder leveling process. It is thin and conformable, with outstanding tear and abrasion resistance at elevated temperatures (good for high temperature masking applications). Adhesive will thermoset to increase adhesion values. Leaves minimal residue when removed after manufacturing process; reduces clean-up time and minimizes rejects. Permits observation of board during processing. EGPF-02 Kapton Electrical Grade/Printed Circuit Polyimide Film Tape has excellent resistance to acids, oils, solvents, aging, staining and water immersion.
* Multiple cases may be shipped per package in order to minimize the charge for shipping.
Technical Information
JVCC EGPF-02 Kapton Polyimide Film Tape
- Adhesive: high performance silicone How are adhesives different?
- Carrier/Backing: electrical grade polyimide film
- Thickness: 3.6 mils (carrier, adhesive) 2 mils (carrier) What is mil thickness?
- Adhesion: 21 ounces per inch (to stainless steel test panel)
- Tensile Strength: 21 pounds per inch (longitudinal)
- Dielectric Strength: 7000 volts
- Service/Operating Temperature: up to 392°F
- Elongation: 70%
- Certifications: MIL-P-46112B; UL510 approved for flame retardance
- Core: 3" diameter plastic
Note: Specifications are those given by manufacturers and are not tested for accuracy.
Roll Sizes/Widths
Please note that tape rolls are NOT guaranteed to be splice-free. Tape rolls are typically cut to standard tape industry metric-cut sizes - or approx 5% narrower than the nominal size (i.e. 24mm per 1-inch of nominal width ordered).
Please contact us to inquire about pricing for full-cut widths (e.g. a 6 inch roll cut to exactly 152mm instead of 144mm).
Alternative to...
This product can be used as an alternative to the following products(s):
- Bondtec #911-325
- Electro Tape #95-2
- Anchor #K-350
- American #304-2
- Permacel #222
- T&F #3903
- Taconic #6325-02
- Berry Plastics #2345-2
- Tesa #4429
PLEASE NOTE: "Alternative" to is NOT the same as equivalent to so please ensure the specifications listed are suitable for your application.
hot melt rubber (synthetic)
Offers the widest range of application flexibility available. Exhibits excellent processing performance whether manually or automatically applied. Has superior tensile strength, adhesion properties and holding force which ensures consistent, reliable seals. Hot melt adhesive will bond faster to a surface which is referred to as quick-grab or quick-stick. It typically has higher tack (will feel stickier to the touch), but is also softer. It has lower heat resistance, shear resistance, and sometimes UV resistance than an acrylic adhesive. NOTE: it is called hot melt because the adhesive is applied hot by the manufacturer and then hardens as it cools (you do not need to apply heat to the tape yourself).
natural rubber
Properties are similar to that of hot melt rubber, but natural rubber often holds where other adhesives won't (recycled fibers, dust, cold, heat and heavy loads). It provides good overall adhesion and moisture resistance.
acrylic
Offer excellent performance, especially for applications in temperatures less than 40°F and greater then 120°F. It provides excellent clarity, has high shear strength, is usually more permanent/durable even when exposed to moisture, and it ages well over extended periods in fluorescent and sunlight. Since it remains clear for the life of the application and does not yellow over time it is ideal for applications such as sealing white cartons. While it has good initial adhesion it does take 24-48 hours to cure and to achieve its maximum bond strength (has gradual adhesion buildup). Another difference between hot melt rubber and acrylic adhesive is if you fold tape over making the two adhesive sides touch the acrylic adhesive will remain attached to the carrier (e.g. paper, film) while a hot melt adhesive will stick to itself and pull off of the carrier. It is the best choice for clarity, UV resistance and aging characteristics.
silicone
Is great for extreme temperature applications since silicone adhesive can work in continuous operating temperatures from -100°F to 500°F. They also exhibit good chemical resistance, retain electrical properties, and remove cleanly with little or no residue.
zinc oxide
Zinc oxide based adhesive formula is a skin-friendly adhesive which is commonly used on sports medicine tapes.
Thickness, AKA caliper or gauge, refers to the distance from one surface of a tape backing, or adhesive, to the other.
1 mil = 1/1000 of an inch
Examples: 1/16 inch = 62.5 mils; 1/32 inch = 31.25 mils
