JVCC Ultra High Bond Double-Sided Tape [White Foamed Acrylic - 43 mil] (DC-UHB45FA-W)

Print Page

Ask a Question
  • Quantity
    View "Full Pricing Table" below for details including case sizes and volume pricing.
  • Color
  • Size
    Purchased Most Frequently: 1 in. x 36 yds. (White)
  • Price
    $ Price/photo will update once Color & Size chosen.
Before ordering, please read the "Product Description & Specs" tab content for more information about this item.

Product Description

JVCC DC-UHB45FA-W Ultra High Bond Double-Sided Tape is constructed of a white foamed acrylic system which has excellent all-around bonding properties which allows for very high performance in the most demanding of applications. Ideal for structural bonding applications in the transportation industry. Also used to bond plastic and wooden window glazing bars and to fix architectural cladding panels. The pressure-sensitive acrylic composition has very good tack; has excellent adhesion to a variety of surfaces; and has high shear strength performance. The tape is carried on a red, release coated polyethylene liner that is easily removed. Has good UV resistance.

This double-sided (AKA double-coated) tape will bond to most surfaces including many plastics, composites, sealed woods, and metals; however thorough evaluation is recommended when bonding to low energy surface material such as Polyethylene, Polypropylene, silicones, and Teflon. For lower energy surfaces may need to use an adhesive promoter/primer such as IPA (isopropanol) on the substrate prior to application. When applying the tape after removing the release liner be careful not to contaminate the acrylic adhesive and try to immediately bond the tape to the surface without entrapping air between the tape and the surface it is being applied to. At a minimum application-pressure should be 15 pounds per inch of tape width in order to achieve maximum bond strength. The dwell time the tape needs to be in contact with both surfaces before it reaches its maximum adhesion is 1 to 24 hours.

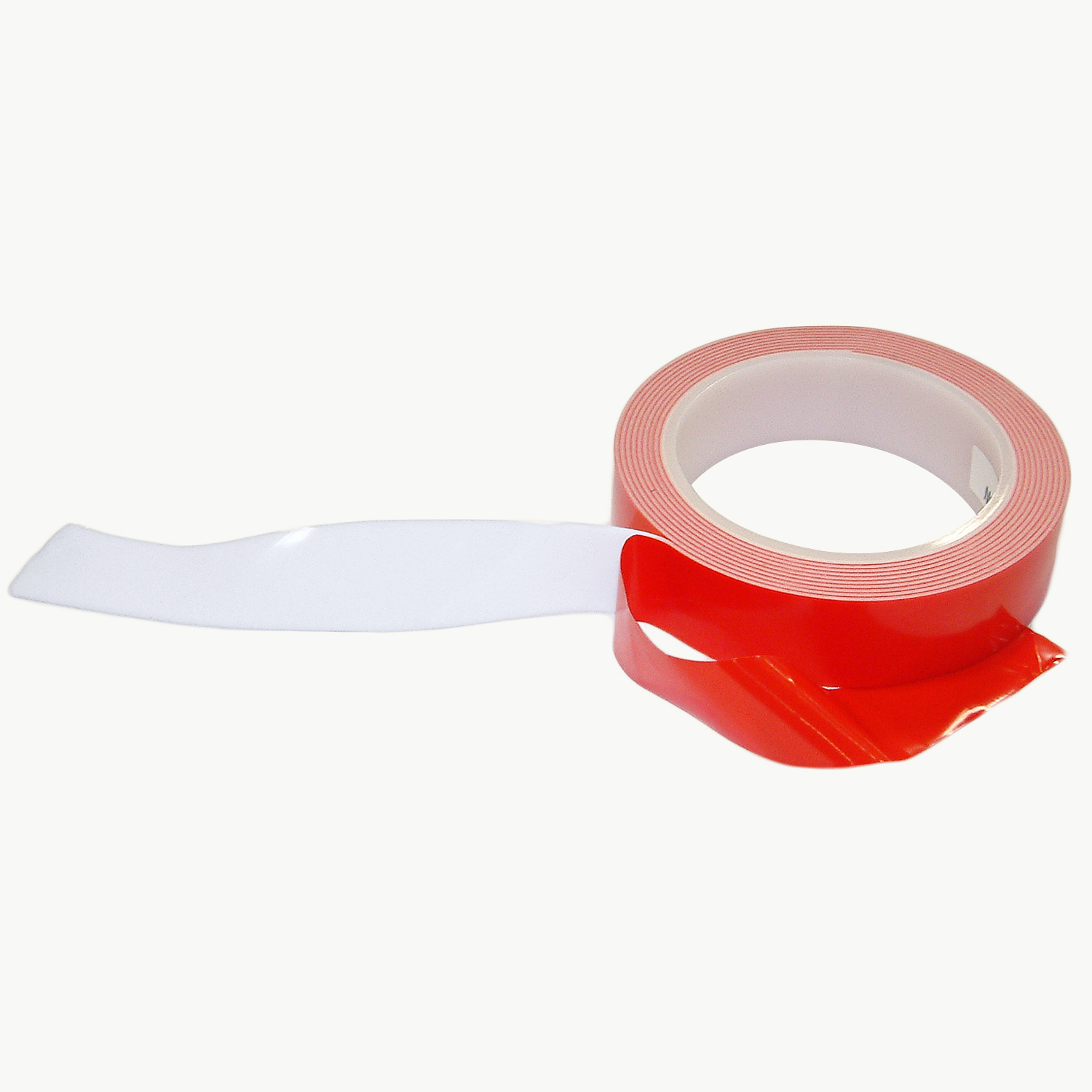

Image does not show a full 36 yard roll.

Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size), which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov/.

* Multiple cases may be shipped per package in order to minimize the charge for shipping.


Technical Information

JVCC Ultra High Bond Double-Sided Tape (DC-UHB45FA-W)
  • Carrier/Backing: foamed acrylic
  • Adhesive: ultra high bond acrylic   How are adhesives different?
  • Release Liner: red polyethylene film
  • Thickness: 43.3 mils (carrier, adhesive)   What is mil thickness?
  • Adhesion: 162 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 141 pounds per inch (longitudinal)
  • Service/Operating Temperature: -40°F to 212°F
  • Core: 3" diameter plastic
  • Shelf Life: 12 months
  • Color: Light Gray
  • Appearance/Consistency: Liquid
  • Set Time : 24 hours
  • Country of Origin: South Korea
Note: Specifications are those given by manufacturers and are not tested for accuracy.

Download Datasheets

The following downloads are available for this product:

Download Product Data Sheet
Alternative To

Alternative to...

This product can be used as an alternative to the following products(s):

  • 3M #4622, #4945, #4946, #4950
  • Hi-Bond #4110W
PLEASE NOTE: "Alternative" to is NOT the same as equivalent to so please ensure the specifications listed are suitable for your application.
View related products we sell to this item.

DC-UHB45FA-W Special Order Sizes


1/4 in. x 36 yds.

Actual Size: 6.3mm wide

Approximately 4 extra business days to ship
DC-UHB45FA-W/ 0253624

Single Item (1-11 Items)

½ Case (12 Items)

1 Case (24 Items)

2+ Cases (48, 72, 96, ... Items)

½ case minimum

a 14% discount

a 18% discount

a 25% discount





3/8 in. x 36 yds.

Actual Size: 9.5mm wide

Approximately 4 extra business days to ship
DC-UHB45FA-W/ 0383616

Single Item (1-7 Items)

½ Case (8 Items)

1 Case (16 Items)

2+ Cases (32, 48, 64, ... Items)

½ case minimum

a 15% discount

a 18% discount

a 25% discount





1/2 in. x 36 yds.

Actual Size: 12.7mm wide

Approximately 4 extra business days to ship
DC-UHB45FA-W/ 053612

Single Item (1-5 Items)

½ Case (6 Items)

1 Case (12 Items)

2+ Cases (24, 36, 48, ... Items)

½ case minimum

a 15% discount

a 18% discount

a 25% discount





3/4 in. x 36 yds.

Actual Size: 19.0mm wide

Approximately 4 extra business days to ship
DC-UHB45FA-W/ 075368

Single Item (1-3 Items)

½ Case (4 Items)

1 Case (8 Items)

2+ Cases (16, 24, 32, ... Items)

½ case minimum

a 15% discount

a 18% discount

a 23% discount





1 in. x 36 yds.

Actual Size: 25.4mm wide

Approximately 4 extra business days to ship
DC-UHB45FA-W/ 1366

Single Item (1-2 Items)

½ Case (3 Items)

1 Case (6 Items)

2+ Cases (12, 18, 24, ... Items)

½ case minimum

a 16% discount

a 18% discount

a 21% discount





   Please Read

Special Order Policies

  • Special orders are non-returnable (and non-cancelable if materials have been already ordered or cut before the cancellation request was received).
  • Special order sizes often ship direct from our supplier so will not arrive together with stocked products.

Special Order Minimums

  • Minimum requirements apply because a size may be non-stock.
  • Minimum Quantities: If a particular size has a minimum item requirement, please only order that size in multiples of that minimum (e.g. if the minimum is 12, then use multiples like 12, 24, 36, etc).

Question & Answers

User Reviews

Made in the USA
hot melt rubber (synthetic)
Offers the widest range of application flexibility available. Exhibits excellent processing performance whether manually or automatically applied. Has superior tensile strength, adhesion properties and holding force which ensures consistent, reliable seals. Hot melt adhesive will bond faster to a surface which is referred to as quick-grab or quick-stick. It typically has higher tack (will feel stickier to the touch), but is also softer. It has lower heat resistance, shear resistance, and sometimes UV resistance than an acrylic adhesive. NOTE: it is called hot melt because the adhesive is applied hot by the manufacturer and then hardens as it cools (you do not need to apply heat to the tape yourself).
natural rubber
Properties are similar to that of hot melt rubber, but natural rubber often holds where other adhesives won't (recycled fibers, dust, cold, heat and heavy loads). It provides good overall adhesion and moisture resistance.
Offer excellent performance, especially for applications in temperatures less than 40°F and greater then 120°F. It provides excellent clarity, has high shear strength, is usually more permanent/durable even when exposed to moisture, and it ages well over extended periods in fluorescent and sunlight. Since it remains clear for the life of the application and does not yellow over time it is ideal for applications such as sealing white cartons. While it has good initial adhesion it does take 24-48 hours to cure and to achieve its maximum bond strength (has gradual adhesion buildup). Another difference between hot melt rubber and acrylic adhesive is if you fold tape over making the two adhesive sides touch the acrylic adhesive will remain attached to the carrier (e.g. paper, film) while a hot melt adhesive will stick to itself and pull off of the carrier. It is the best choice for clarity, UV resistance and aging characteristics.
Is great for extreme temperature applications since silicone adhesive can work in continuous operating temperatures from -100°F to 500°F. They also exhibit good chemical resistance, retain electrical properties, and remove cleanly with little or no residue.
zinc oxide
Zinc oxide based adhesive formula is a skin-friendly adhesive which is commonly used on sports medicine tapes.
Thickness, AKA caliper or gauge, refers to the distance from one surface of a tape backing, or adhesive, to the other.
1 mil = 1/1000 of an inch
Examples: 1/16 inch = 62.5 mils; 1/32 inch = 31.25 mils
The cut level indicates how many grams of cutting load a glove can withstand from a sharp blade before being penetrated.
Lower gauge gloves are heavier - have thicker construction, fewer stiches knitted per inch and offer less dexterity.
Higher gauge gloves are lighter - have thinner/finer construction, more stitches knitted per inch and offer more dexterity.
Gloves offered typically runs from 7 to 18 (12 and 13 are in the middle of the scale).
